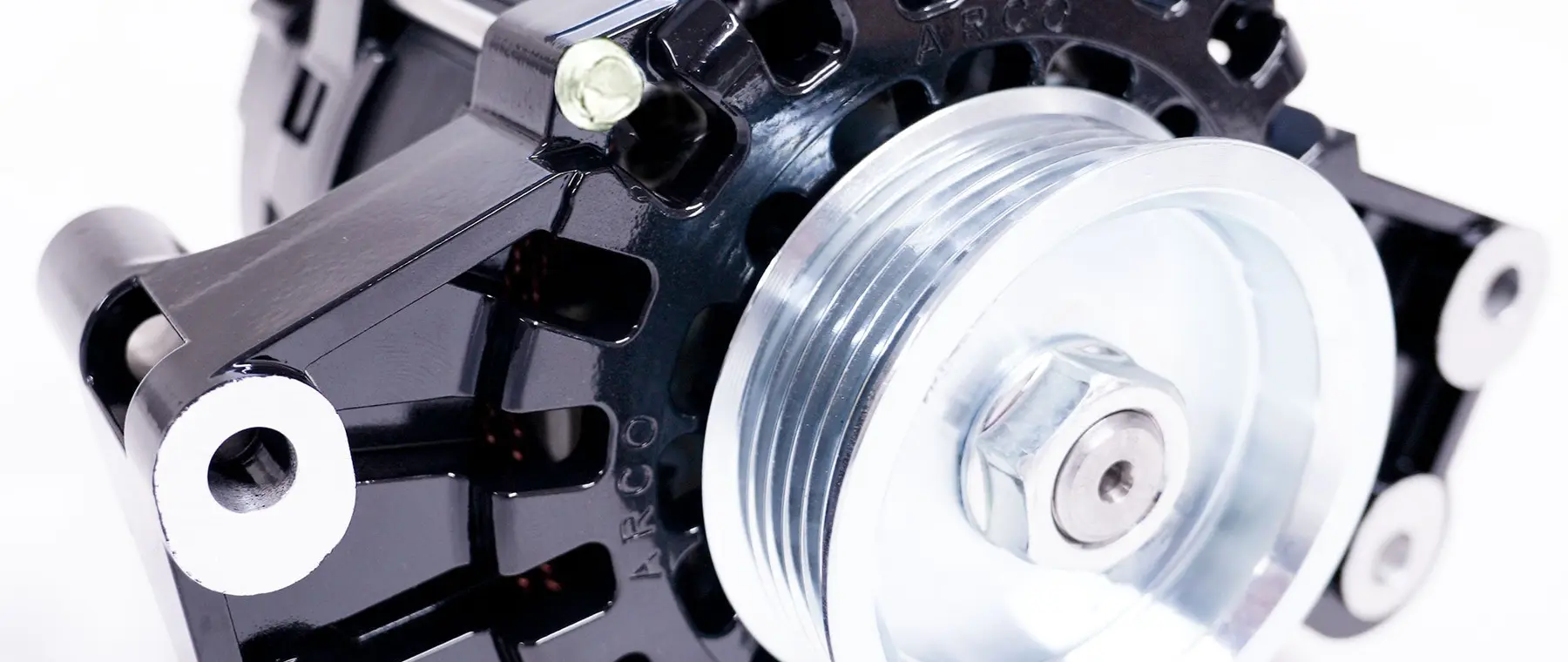

ARCO Marine has introduced the Zeus A225 high-output alternator for Mercury Verado outboards, targeting boats whose electrical loads have outgrown the capacity of standard charging systems. The unit is rated at 225 amps and is designed for 2018–2026 Verado applications, giving owners a way to support large lithium banks and demanding onboard equipment directly from the propulsion engines.
ARCO quotes 95 amps at idle, 187 amps at a representative cruise point and a maximum cold output of 254 amps. The company says the alternator adds less than three pounds compared with the stock unit, an important consideration on multi-outboard installations where every additional component is multiplied across the transom.
Outboard boats are carrying much larger electrical loads
Modern performance yachts and large centre consoles increasingly carry air conditioning, gyro stabilisers, refrigeration, premium audio, large displays and high-capacity inverters. Those loads can exceed what traditional outboard alternators were expected to support, especially when owners also want to recharge lithium house banks quickly.
The A225 is intended to shift more of that demand back to the propulsion engines, potentially reducing reliance on a separate generator. Whether a particular yacht can eliminate a genset depends on its total energy budget, but higher alternator output creates more design options for builders and refit yards.
Output remains high away from maximum rpm
ARCO lists 95 amps at 700rpm and 187 amps at 4,000rpm, with the 225-amp figure representing rated output and 254 amps quoted as maximum cold output. That matters because an alternator that only reaches useful output near full engine speed would provide limited benefit during slow manoeuvring or normal cruising.
Lithium batteries can accept high charge rates, so the extra current can shorten recharge time when the system is correctly regulated. Owners should still match alternator output to battery limits, cabling, cooling and the vessel’s overall charge-management strategy rather than treating the largest number as automatically better.
The kit targets recent Mercury Verado engines
The first A225 package is engineered for 2018–2026 Mercury Verado applications and includes the alternator-side wiring required for installation. Focusing on a defined engine family allows ARCO to optimise mounting and belt geometry rather than offering a universal unit that needs extensive adaptation.
For owners of twin, triple or quad-outboard yachts, a supported engine-specific kit can reduce installation uncertainty. It also makes service planning clearer because the alternator becomes part of a documented charging system rather than a custom one-off modification.
High-output charging changes onboard energy planning
ARCO positions the A225 as a way to support equipment such as air conditioning and gyro stabilisers while underway without depending entirely on a dedicated generator. The more important change is that outboard yachts can now be designed around much larger DC energy flows than were common only a few years ago.
That trend will put more emphasis on lithium battery management, inverter capacity, cable sizing and monitoring as well as the alternator itself. The A225 is therefore best understood as one part of a complete high-energy architecture for increasingly sophisticated sub-24-metre yachts.
